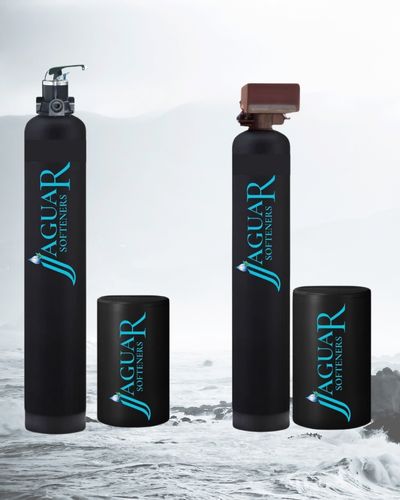

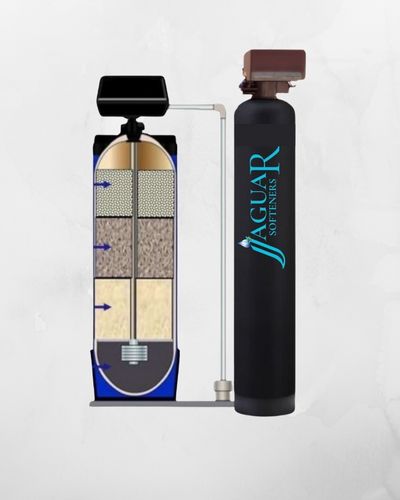

JAGUAR AUTOMATIC WATER SOFTENER - 1354
Products
Specifications
Max. Flow Rate in LPH
Media Tank Volume in Liter
Sand Quantity in Liter
Filtration Precision in Micron
Working Temperature
Working Pressure
Dimensions in mm
Inlet/Outlet Size
1000 ~ 2500
55
35
50
5°C ~ 40°C
0.5 ~ 6.0 Mpa
L 281 x W x 281 x H1305
1″
Application
- For Entire Bungalow
- Before water softener
- Before RO/UF pre Treatment
Accessories
- SV – 1/2″
- Pressure Switch – Aster-NXT
- Pressure Gauge – 7kg
- MPV Flap Cover
- Six Way Connector
- Sampling valve
Specifications
Model
Vessels
MPV Model
Max. Flow Rate in LPH
OBSA in Liter (Basis on 200 ppm)
OBR in Liter (Basis on 200 ppm)
MPV Display Size in mm
Resin Tank Volume in Liter
Resin Quantity in Liter
Brine Tank Volume in Liter
Salt Required For Regeneration
Working Temperature
Working Pressure
Inlet/Outlet Size
Skid/ Stand>br> LP Required For BFT Mpv

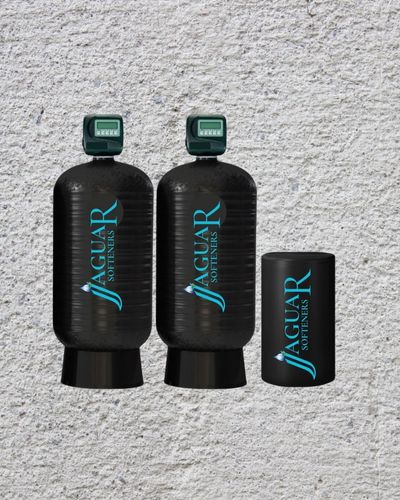

Softener 100R
FRP 1354
63604 /65605/63604 BFT
2000 ~ 3000
80000
20000
60
110
80
100
12Kg
5°C ~ 50°C
0.15 – 0.6 Mpa
1″
SS Stand
Danfos
Features
- Easy to Install and Ready to use
- No need to replace the Filter Core / media during the Usage.
- Backwash Cleaning rate is more than 30% compared with traditional products.
- Compact design, stylish long durable cabinet
- Filter prevent physical impurity
- Fully automatic microprocessor-controlled operation
- Back wash start when output volume drops zero thus providing each drop of filter water
Application
For Entire Bungalow
Specifications
Max. Flow Rate in LPH
OBSA in Liter (Basis On 200ppm)
OBR in Liter (Basis On 200ppm)
Resin Tank Volume in Liter
Resin Quantity in Liter
Brine Tank Volume in Liter
Salt Required for Regeneration
Working Temperature
Working Pressure
Dimensions in mm
Inlet/Outlet Size
1000 ~ 3200
69000
11500
55
46
73
7 KG
5°C ~ 50°C
0.15 – 0.6 Mpa
L 392 x W 484 x H 1300
1″
Features
- Fully automatic microprocessor-controlled operation
- Easy to Install and ready to use
- Compact design, stylish long durable cabinet
- Indicate – Current time, Remaining Soft water & currant flow
- Brine valve assembly with a float valve
- Inbuilt bypass control valve with softening controller.
- Unique LP-BFT Function to automation with Raw water supply
- Elegant six way connector, Pressure Gauge, Pressure Switch, SV.
- BFT Sense to low pressure or no inlet water at regeneration time
Application
- For Entire Bungalow
- Fore Entire Flat

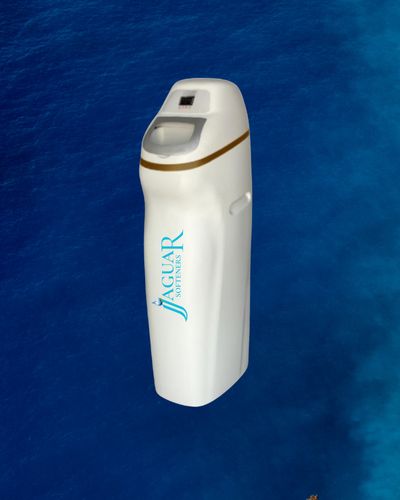

JAGUAR AUTOMATIC WATER SOFTENER - 10A (SINGLE POINT USE)
Specifications
Mode of Operation
Max. Flow Rate in LPH
OBSA in Liter (Basis On 200ppm)
OBR in Liter (Basis On 200ppm)
Resin Tank Volume in Liter
Resin Quantity in Liter
Brine Tank Volume in Liter
Salt Required for Regeneration
Working Temperature
Working Pressure
Dimensions in mm
Inlet/Outlet Size
Automatic/Manual
600~ 1200
12000
2000
10
6
12
1.2 KG
5°C ~ 50°C
0.15 – 0.6 Mpa
L 410 x W 240x H 655
3/4″
Features
- Less space require
- Easy to Install and ready to use
- High-intensity FRP resin vessel (Tank)
- Brine valve assembly with a float valve
- Compact design, stylish long durable cabinet
- Fully automatic microprocessor-controlled operation
- Back wash start when output volume drops zero thus providing each drop of filter water.
Application
- Beauty Salon
- Before Dishwasher
- Before Washing Machine
Specifications
Model
Max. Flow Rate in LPH
OBSA in Liter (Basis on 200 ppm)
OBR in Liter (Basis on 200 ppm)
Resin Tank Volume in Liter
Resin Quantity in Liter
Brine Tank Volume in Liter
Salt Required For Regeneration
Working Temperature
Working Pressure
Dimension in mm
Inlet/Outlet Size
AUTOMATIC Softener -45 AD
1500 ~ 2000
70000
7000
45
28
70
6.5 Kg
5°C ~ 50°C
0.15 – 0.6 Mpa
L 525 x W 326 x H 1070
3/41″
Features
- Fully automatic microprocessor-controlled operation
- Easy to Install and ready to use
- Compact design, stylish long durable cabinet
- Indicate – Current time, Remaining Soft water & current flow
- High-intensity FRP resin tank
- Brine valve assembly with a float valve
- At the time of regeneration output water getting constantly
- Inbuilt bypass valve
- Auto OBR set by hardness
- Big Display
Application
- For Entire Bungalow
- For Entire Flat

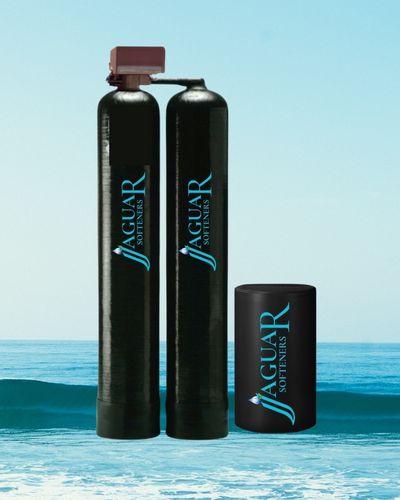

Specifications
Model
Vessels
Max. Flow Rate in LPH
OBSA in Liter (Basis on 200 ppm)
OBR in Liter (Basis on 200 ppm)
Resin Quantity in Liter
Brine Tank Volume in Liter
Salt Required For Regeneration
Working Temperature
Working Pressure
Inlet/Outlet Size
LP Required For BFT Mpv
Softener 1000R
FRP 3672, MS 1000 x 2000
14000 LPH
80000
237500 Liter
950 Liter
1000 Liter
143Kg
5°C ~ 50°C
0.15 – 0.6 Mpa
2″
Danfos
Features
- Automatic refill brine tank by multiport valve
- Indicate – Current time, Remaining Soft water & currant flow
- Brine valve assembly with a float valve
- Fully automatic microprocessor-controlled operation
- Back wash start when output volume drops zero thus providing each drop of filter water
- Unique LP-BFT Function to automation with Raw water supply consistency
- Minimum wiring for maximum automation of raw water pump & tank full sensor
Application
- For Entire Society
- Industries
- Hostels/Schools
- Hotels/Restaurants
